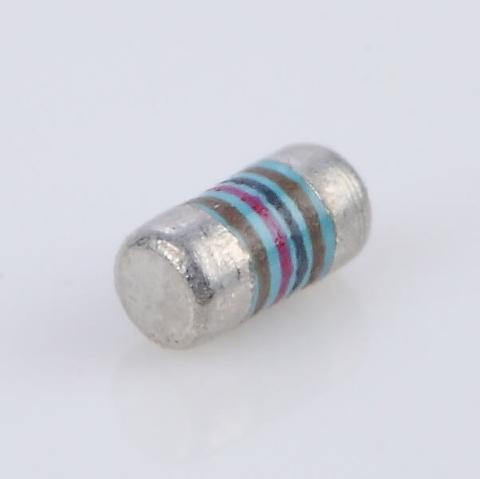

Vehicle Grade Metal Film MELF Resistor (MM102) is certificated by AEC-Q200. The dimension is in a cylindrical shape and with Metal Electrode Leadless Face(MELF resistor). MELF package is stronger mechanical structure to endure vibration and thermal shock. If compare with flat chip resistor, the body length is the same as flat chip resistors(0805), but the dimension is three times bigger than chip-R 0805. So that is caused better in heat dissipation than flat chip resistors. Due to made by thin-film technology with superior resistance stability, the resistance is more stabilized than flat chip resistor after long-term usage.
Vehicle Grade Metal Film MELF Resistor (MM102) features power rating at 0.2W, resistances range from 0.22 ohm to 2.2M ohm. It's smallest MELF resistor that we called micro MELF as well. FIRSTOHM is a leading MELF supplier in the worldwide, high quality made with superior stability and reliability.
FIRSTOHM is able to design thin-film resistors according to customer's requirements with high quality and reliability since 1969, manufacture in TAIWAN and ISO9001/ISO14001 certificated.
Specifications Per
• IEC 60115-1
• EN140401-803
Features
• Anti-sulfur
• AEC-Q200 compliant
• SMD enabled structure
• Excellent solderability termination
• Heat dissipation is much better than chip resistor
• Products meet RoHS requirements and do not contain substances of very high concern identified by European Chemicals Agency
Applications
• Automotive
• Telecommunication
• Industrial
• Medical equipment
Power Rating : 0.2W
Ohm Range : 0R22 ~ 2.2M
Tolerance : ±0.5%、± 1%、± 2%、± 5%
